Many teams struggle to move from a wall of data to an actionable interface. This is especially true in data-heavy fields like cybersecurity and enterprise software, where clarity can be the difference between control and chaos.
This article goes beyond pretty pictures. We'll break down real-world dashboard examples and extract practical lessons on hierarchy, chart selection, accessibility, and user validation. You'll learn how to design a dashboard that doesn't just show data, but drives action.
Key Takeaways
- Effective dashboards are designed around a specific audience and their recurring questions, not just the data you have available.
- The best examples use clear visual hierarchy, consistent components, and restrained color to guide the user's attention.
- Dashboard type matters: operational, analytical, strategic, and tactical dashboards all serve different users and decisions.
- Real-world usability depends on accessibility, responsive design, data freshness, and clear next steps—details often missing in concepts.
- Always test dashboard concepts with actual users to validate that the design helps them complete key tasks before you build.
An Overview of Dashboard Design in UX
A dashboard is a focused user interface that brings together related metrics, status information, and controls to help a user monitor, analyze, or act. In B2B and enterprise software, dashboards serve as the command center for financial accounts, security events, operational workflows, and system performance.
However, there's a big gap between a slick visual concept on a design gallery and a production-ready dashboard. A real product must account for all the messy details:
- Clear data definitions
- Loading and empty states
- User permissions and filtered views
- Error handling
- Accessibility for all users
- Responsive behavior on different screen sizes
The examples below prioritize practical design lessons over visual flair alone. Each one demonstrates a useful pattern for turning data into decisions across analytics, operations, finance, and more.
Best Dashboard Designs and Examples
We selected these examples based on their ability to support a clear user goal. Each one demonstrates a strong information hierarchy, appropriate data visualization, and purposeful interaction patterns that you can adapt for your own products.
Analytics and SaaS Overview Dashboard
SaaS product dashboards must give users a high-level summary of what's happening while also providing a path to dig deeper. They need to answer the question, "What changed?" before the user has to ask.
A great example is Mixpanel’s Company KPIs Dashboard, which organizes key metrics like engagement, retention, and growth into distinct reports. It uses a clean card-based layout, consistent chart styles, and clear labeling to help users quickly scan for changes and then segment the data to understand why something happened.
| Aspect | Details |
|---|---|
| User Goal | Understand top-level business health and product usage trends. |
| Primary Users | Product managers, marketers, executives. |
| Strongest Pattern | Progressive Disclosure: Shows headline KPIs first, then allows users to click into reports for detailed segmentation. |
| Production Note | Success depends on having clear, agreed-upon metric definitions for terms like "active user" or "retention." |
Operational Monitoring Dashboard
Operational dashboards are built for speed and immediate action. For support teams, infrastructure engineers, or logistics coordinators, the goal is to spot and resolve issues in near real-time. These interfaces prioritize scannability, clear status indicators, and direct links to the next task.
Datadog's Service Page shows how this works in practice. It uses distinct Critical, Warning, and OK states to show service health at a glance. Instead of forcing users to analyze dense charts, it surfaces alerts and incidents, sorting them by severity and time. This "exception-first" approach ensures the most urgent information gets immediate attention.
| Aspect | Details |
|---|---|
| Cadence | Real-time or near-real-time; used throughout the day. |
| Key Visual Pattern | Status Indicators: Using color, icons, and text to make system states instantly readable. |
| Action Supported | Triage and investigate alerts. |
| Accessibility Note | Status must be conveyed by more than just color. Pairing a red dot with an icon and a "Critical" text label ensures it's accessible. |
Financial or Fintech Dashboard
In finance, trust is everything. A financial dashboard must be precise, transparent, and predictable. Users need to understand their balances, track transactions, and see how figures are calculated without any ambiguity.
Stripe’s Balance summary report excels at this. It clearly distinguishes between pending and available funds, and gives exact dates for when money moves between these states.
Every summary figure is backed by detailed transaction records users can inspect. Precise labels and clear date ranges make that transparency easy to trust.
| Aspect | Details |
|---|---|
| User Decision | "How much money do I have, and when can I access it?" |
| Most Useful Viz | A simple table: For financial records, a detailed, sortable table is often more useful than a complex chart. |
| Trust-Building Element | Clear status tags (e.g., Processing, Distributed, Returned) and explicit date labels for every transaction. |
| Risk to Avoid | Ambiguous totals. A "Balance" figure is useless without knowing if it's available now or pending for next week. |
Cybersecurity or Risk Dashboard
A cybersecurity dashboard has to signal priority. With thousands of potential events, a design that makes everything look equally urgent is a design that fails. The goal is to surface the most critical risks and guide analysts toward remediation.

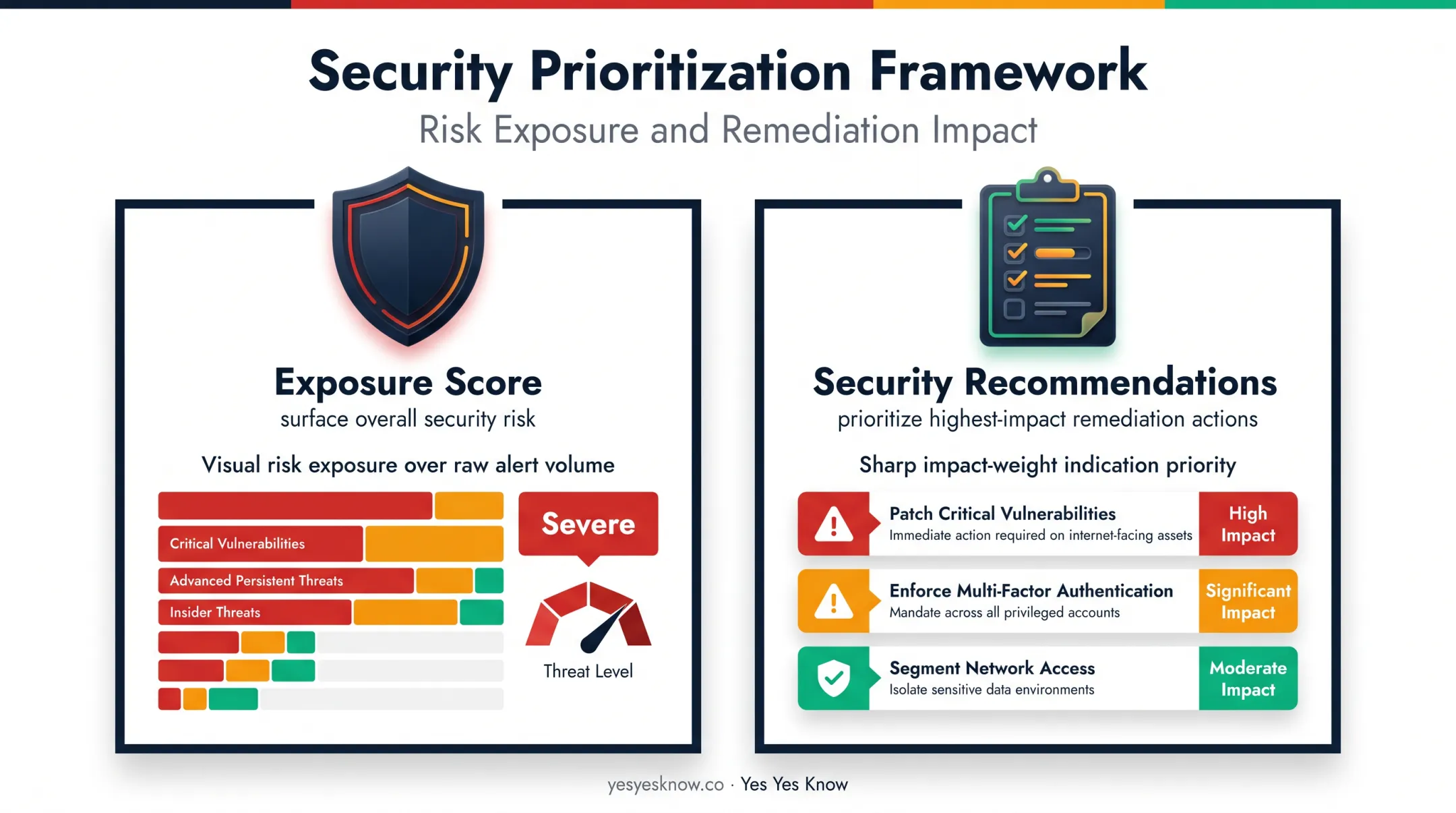

Microsoft Defender's Vulnerability Management dashboard does this well by focusing on an "exposure score" and a list of top security recommendations. Rather than showing a sea of red alerts, it prioritizes actions that will have the biggest impact on reducing risk.
The same prioritization principle shaped our work with ThreatX on their API Catalog dashboard. We helped CISOs and SOC analysts filter hundreds of APIs down to the 27 with critical rule matches.
| Aspect | Details |
|---|---|
| Monitoring Objective | Identify and prioritize the most significant threats to the organization. |
| Priority Signal | An exposure score or a prioritized list of remediation tasks is more actionable than a simple count of total alerts. |
| Interaction Pattern | Drill-down: Clicking a high-level score or recommendation should lead directly to detailed threat information and remediation steps. |
| Design Requirement | Data must be filterable. An analyst needs to be able to pivot from an organization-wide view to a specific site or asset. |
Project Management or Workflow Dashboard
Project management dashboards are all about coordination. They need to show team members what they need to work on, what's blocking progress, and what deadlines are approaching. A good design turns status information into operational action.
Jira’s dashboards are highly configurable but effective when they focus on actionable work. Gadgets like "Assigned To Me" and "Work items in Progress" give individuals a personal to-do list. When combined with statistics grouped by status (e.g., To Do, In Progress, Blocked), the whole team gets a clear picture of forward momentum and where help is needed.
| Aspect | Details |
|---|---|
| Primary Workflow | Daily stand-ups and individual task planning. |
| User Role | Individual contributors, team leads, project managers. |
| Useful Component | Grouped Lists: Grouping tasks by status, priority, or assignee makes it easy for users to find what's relevant to them. |
| Validation Question | "Looking at this, what is the most important thing for you to do next?" |
How We Chose the Best Dashboard Designs
The examples above were chosen for their effectiveness, not their visual trendiness. A useful dashboard is a tool for decision-making. Here are the principles that separate a truly effective dashboard from a decorative one.
Match the dashboard to the user and decision
Before you pick a single chart, you have to know who the dashboard is for and what they need to accomplish. Ask these questions:
- Who is the user? (for example, an executive, a support agent, or a data analyst)
- How often will they use it? (such as daily, weekly, or monthly)
- What recurring questions must it answer? (for example, "Are we on track?" or "What just broke?")
The answers will help you choose the right type of dashboard:
- Operational: For real-time monitoring and immediate response. Think of the Datadog example.
- Analytical: For exploring historical data to understand trends and root causes. This is where the Mixpanel example shines.
- Strategic: For tracking high-level, long-term goals. Often used by leadership and updated less frequently.
- Tactical: For tracking departmental progress against a plan, bridging the gap between strategy and operations.
Build a clear visual hierarchy
A user should be able to understand the most important information on a dashboard in seconds. Use an inverted-pyramid approach: put the most critical, high-level information at the top, followed by trends and comparisons, with detailed tables and records at the bottom.
You can create this hierarchy using simple design tools:
- Position and Size: Important KPIs should be large and placed in the top-left, where users often look first.
- Whitespace: Use empty space to separate and group related information into logical cards or sections.
- Typography: Use different font sizes and weights to distinguish between titles, metrics, and labels.
A quick way to check your hierarchy is the five-second test: show the dashboard to someone for five seconds, then ask what it was about and what stood out. Christine Perfetti's 2007 write-up frames this as a first-impression check. If they can't name the main purpose and key status, your hierarchy needs work.
Choose visualizations that answer specific questions
Choose charts for the question they answer, not for visual flair.
- Change over time? Use a line chart.
- Comparing categories? A bar chart is your best bet.
- Showing part-to-whole? Use a bar chart or a table. Be wary of pie charts—as visualization expert Stephen Few explains, it's hard for our brains to accurately compare the size of slices.
- Need precise values? A table is often the clearest solution.
A single metric becomes far more actionable when you give it context. For example, our work on the Fund That Flip dashboard showed not just the investment amount, but also paired it with the annual percentage rate (APR) and cash-on-cash (CoC) return to give users a complete picture.
Design for accessibility, trust, and real-world states
A dashboard is only successful if everyone on the team can use it. This means building accessibility in from the start. Based on the latest Web Content Accessibility Guidelines (WCAG) 2.2, this includes:
- Sufficient color contrast for text and UI elements.
- Non-color cues for status, such as icons and text labels.
- Readable typography so labels stay legible at a glance.
- Full keyboard navigation with a visible focus indicator.
- Text alternatives for complex charts.
Building trust is just as important. Users need to believe the numbers they're seeing. Include "last updated" timestamps, provide clear definitions for metrics, and allow users to inspect or export the underlying data.
At Yes Yes Know, our research-led UX process for B2B software teams treats these details as requirements, not polish. We run accessibility audits and help teams ship inclusive, trustworthy product experiences.

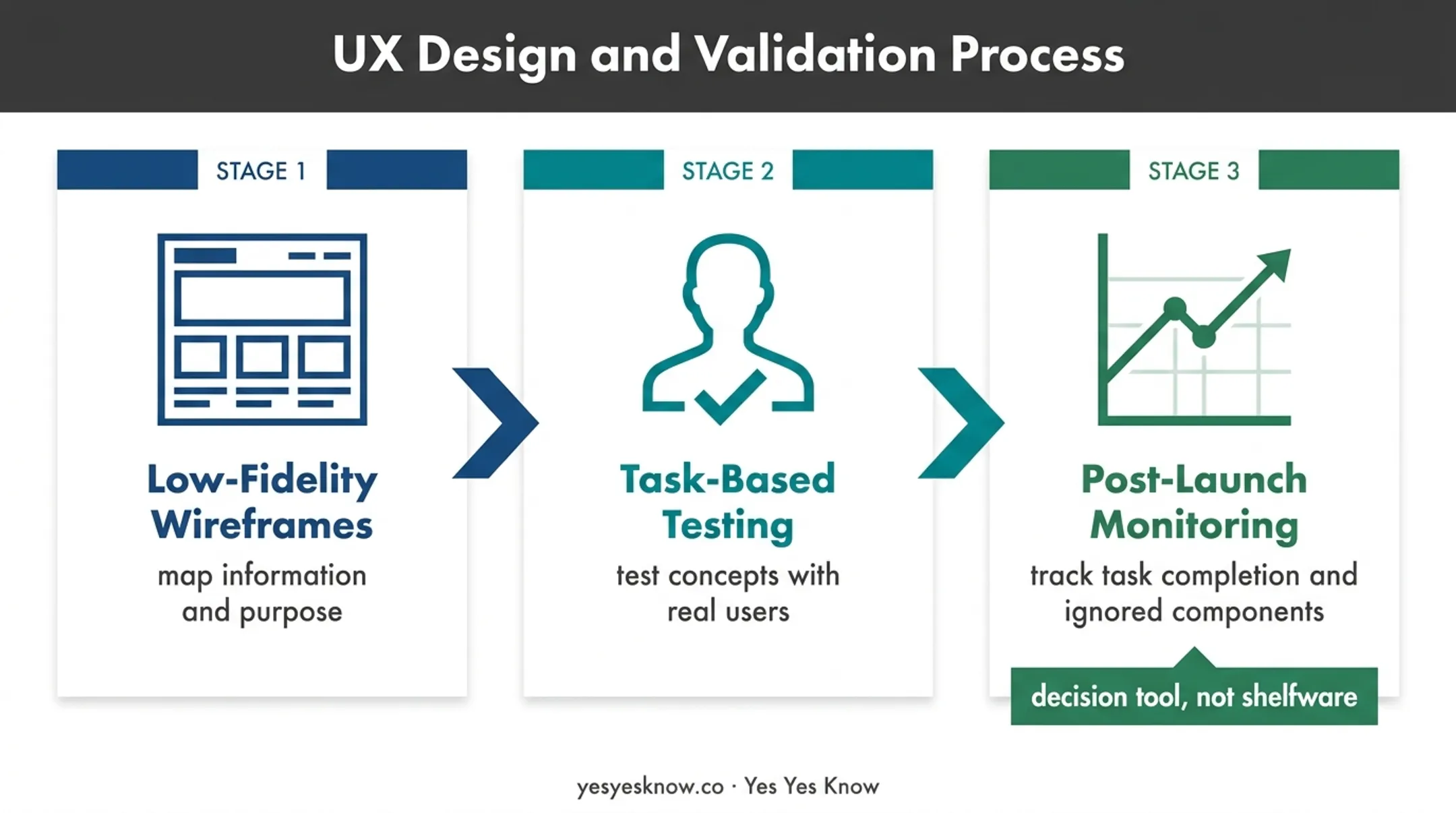

Validate before building and after launch
The most expensive mistake is building the wrong thing. Start with low-fidelity wireframes that map out what information goes where and why, long before you worry about colors and fonts.
Then, test your concepts with real users. Don't just ask, "Do you like it?" Give them tasks. For example:
- "Find the number of severe alarms." (Like in our work with Lakeside)
- "Explain why user retention went down last month."
- "Identify the next action you would take based on this screen."
After launch, the work isn't over. Monitor how people use the dashboard: Are they completing key tasks, or are some components ignored?
The same habit paid off when we validated the Starburst Data onboarding flow and cut average time to under three minutes. Keep testing after ship so the dashboard stays a decision tool, not shelfware.
A Great Dashboard is an Actionable One
The best dashboard designs prioritize clarity over visual trends like dark mode, gradients, or packing more charts onto a screen. They make important information easy to interpret and connect it directly to a decision.
Before you borrow a visual pattern from an example, evaluate it against your own users:
- Audience and the decisions they need to make
- Dashboard purpose and primary workflows
- Visual hierarchy that surfaces critical data first
- Accessibility, trust signals, and clear next actions
Building an interface that balances data density with clarity is a common challenge in complex B2B, SaaS, and data-heavy products. If your team needs research-led UX strategy, accessibility support, or product validation, contact Yes Yes Know.
Frequently Asked Questions
What is the best UI design for a dashboard?
The best design depends on your users' goals. Strong dashboards prioritize clear visual hierarchy, a few essential metrics, consistent components, obvious next actions, and accessibility standards.
What are the four types of dashboards?
The four common types are operational (real-time monitoring), analytical (data exploration), strategic (tracking long-term goals), and tactical (monitoring departmental execution). Each serves a different audience and decision-making cadence.
What are the top 5 dashboard tools?
Five widely used BI platforms ranked as leaders in Gartner's 2025 analysis are Microsoft Power BI, Tableau, Qlik, Looker, and ThoughtSpot. Design quality and fit to user goals matter more than the tool alone.
What is the 5 second rule for dashboards?
The five-second rule checks whether a user can grasp a dashboard's purpose and key status within five seconds of viewing it. It gauges first impressions, but it does not replace structured, task-based usability testing.
What is a dashboard in UX?
In UX, a dashboard is a design pattern that brings relevant data, status indicators, and controls into one place. It helps users monitor complex information and act on recurring decisions or workflows.
