This happens more often than most product teams admit. Piling more metrics onto a screen can add insight, but it also raises the risk of confusion and disengagement, especially in data-heavy B2B software. Working memory can only hold about seven pieces of information at once, so a dashboard with fifteen competing KPIs isn't a data problem. It's a UX problem.
Choosing a chart type is only part of the job. The visualization has to match a real user's goal, their comfort with data, and the decision they need to make next. This guide covers picking the right visual form, designing interactions that reveal detail without overwhelming, protecting user trust, and making dashboards usable for people who rely on screen readers or keyboards.
Key Takeaways
- Treat every chart as an interface answering one specific question, not decoration
- Match chart type to the relationship users need: comparison, trend, distribution, hierarchy, flow, or correlation
- Reduce cognitive load with hierarchy, progressive disclosure, and consistent encoding, without hiding critical information
- Validate with real users and check accessibility, labeling, and non-color cues before you ship
Start With the UX Foundation
Before opening a design tool, decide what job the visualization needs to do.
Exploratory views help analysts explore their own data: filtering, comparing, drilling down to find something new. Explanatory views communicate a finding someone already identified to an audience that needs to act on it. Mixing the two into one dashboard usually satisfies neither user well.
Match the View to the Audience
Consider three different people looking at the same underlying numbers:
- Executive: three or four figures and a clear "good" or "bad" signal in a weekly summary
- Operations user: one meaningful alarm visible among dozens of normal readings
- Analyst: raw access to filter, segment, and drill into detail
One dashboard rarely serves all three well.

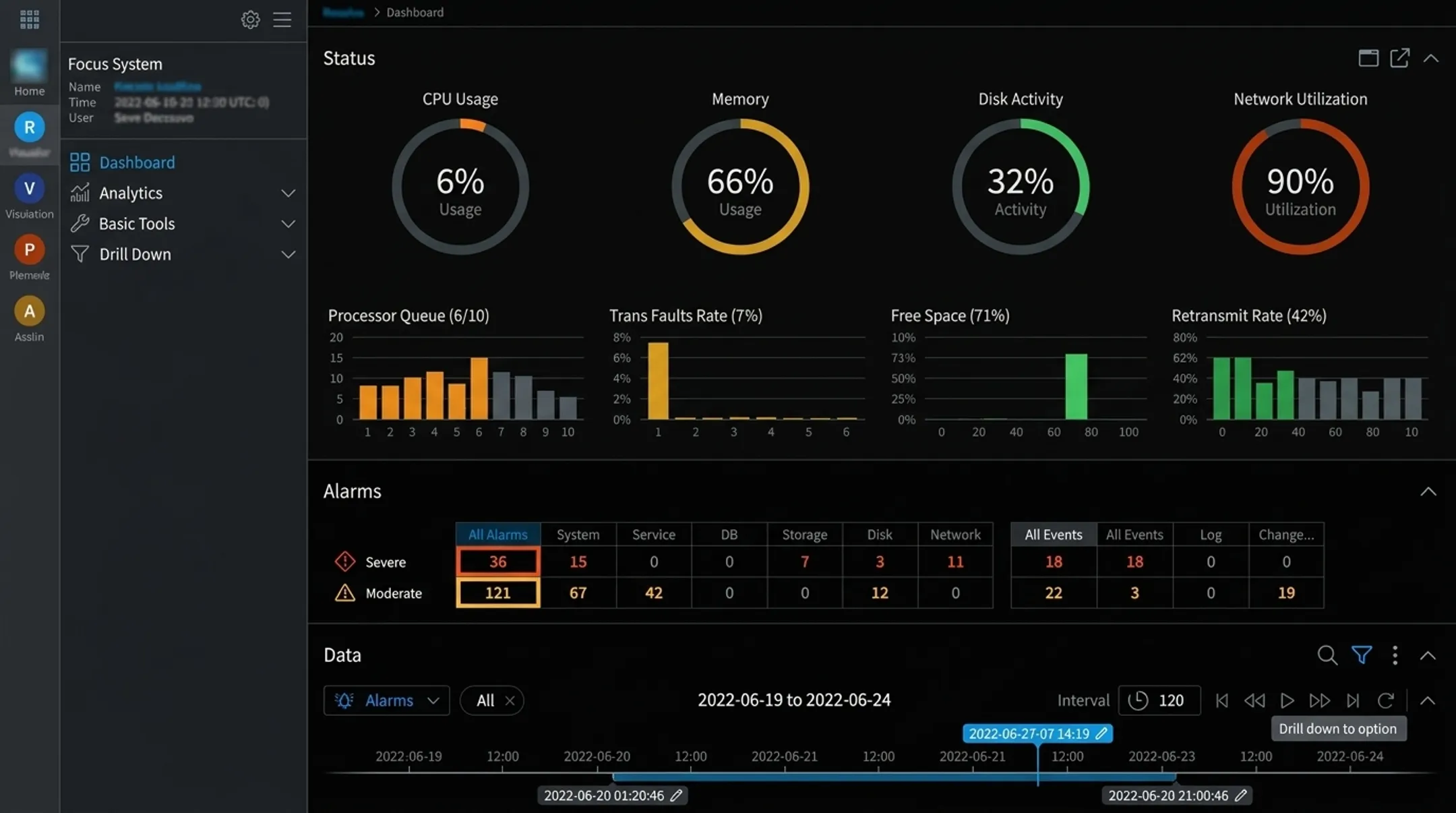

That mismatch showed up on an operational dashboard project for Lakeside. The problem wasn't missing data; it was too much data without a clear plan for when, where, and how to show it. Research into who needed which numbers—and when—produced a layered view of status gauges, bar charts, alarm indicators, and a time-range timeline. Operations staff could scan status at a glance, while analysts could still dig into specifics.
Build In Context, Don't Distort the Numbers
A number without context isn't information. 32% activity means nothing without a baseline, a time period, or a sense of what "normal" looks like. Every primary view should answer:
- Compared to what? (benchmark, prior period, target)
- Over what time period?
- In what units?
Context also protects trust. A y-axis that starts at 80 instead of zero can make a 3% shift look dramatic. That pattern is often called the baseline paradox: a documented way charts exaggerate change (Nightingale, "The Lie Factor and the Baseline Paradox"). If a truncated axis is necessary for readability, label the break and disclose it. The same rule applies to definitions: if "active user" changes meaning between dashboard versions, say so.
Choose the Right Visualization for the User's Question
Chart selection should start with the comparison the user needs to make, not a designer's personal favorite (NN/g, "Choosing Chart Types"). The table below maps each format to the comparison it handles best and the mistake that undermines it.
| Format | Best for | Watch out for |
|---|---|---|
| Bar chart | Comparing categories | Stacked bars hide segment-to-segment comparison |
| Line chart | Trends over time | Implying continuity when data points are sparse |
| Scatter plot | Relationships between variables | Labeling correlation as causation |
| Table | Exact lookup, editing, auditing | Forcing a trend question into row-by-row data |
Long axis labels, too many series in one chart, and dense legends kill comparison fast. If a chart needs a paragraph of explanation to be understood, the format is probably wrong for the question.
Specialized Formats, Used Sparingly
A few formats solve narrower problems well:
- Heat maps reveal patterns across a matrix, but need labeled scales and non-color cues to stay usable
- Histograms and box plots summarize a distribution's center, spread, and outliers. Document your binning rule, since arbitrary bin widths change what's visible
- Treemaps and sunbursts show hierarchy through nested shapes; they're rarely the best default for quick, precise comparisons
- Sankey and network diagrams show flow or relationships between entities, but get unreadable fast with too many links
Chart or Table? Ask What the User Needs to Do
Tables aren't a fallback for "couldn't think of a chart." They're the right call when someone needs to find a specific record, compare exact values row by row, or export data for an audit trail. Charts win when the task is rapid comparison or spotting a trend.

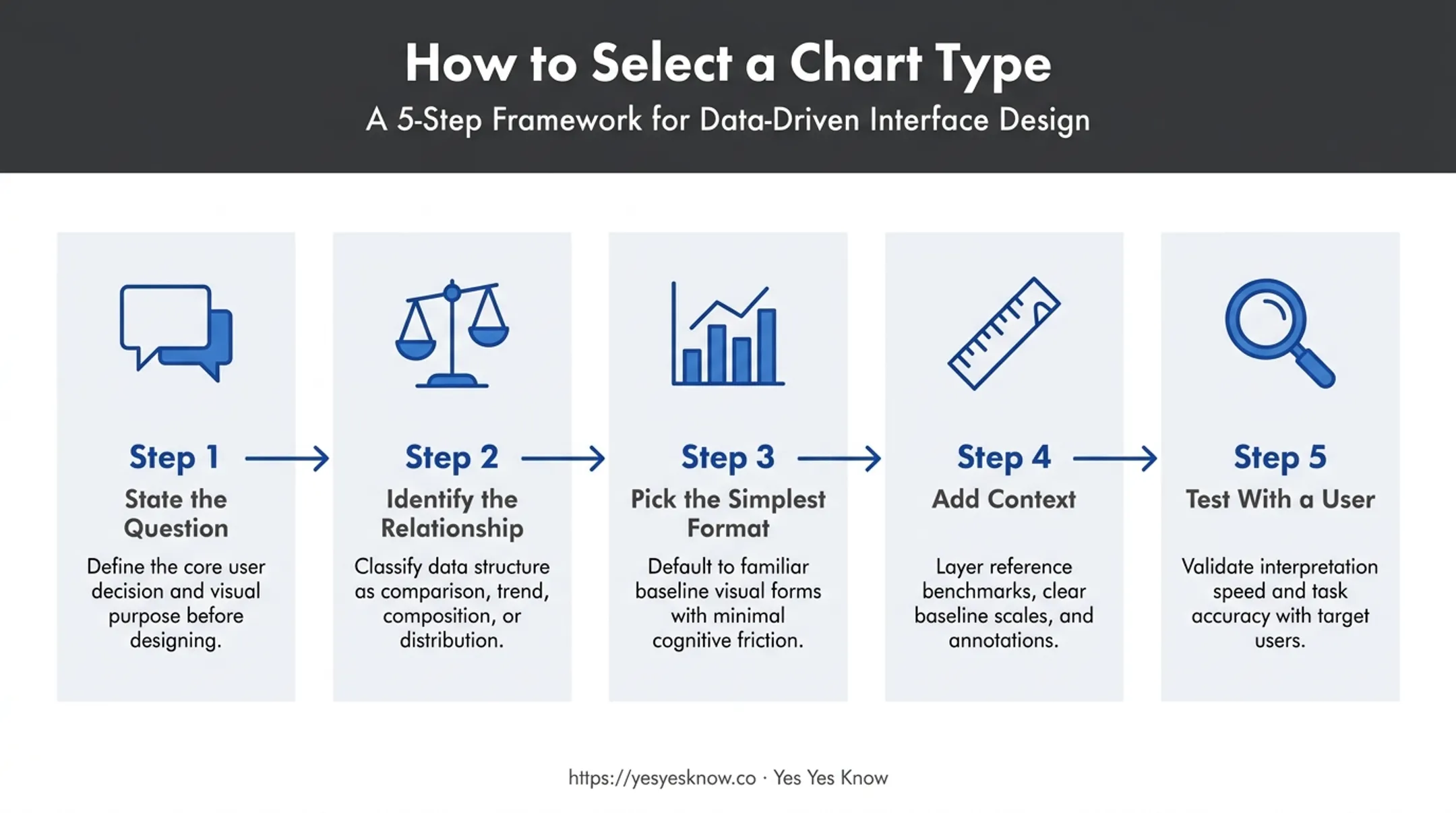

A quick process to test your choice:
- State the question in plain language
- Identify the relationship: comparison, trend, distribution, hierarchy, flow, or correlation
- Pick the simplest format that fits
- Add context: scale, units, comparison point
- Test it on someone unfamiliar with the data and see if they can answer the question unaided
Design Interactions That Turn Data Into Insight
A dashboard that shows everything at once shows nothing clearly. Progressive disclosure means presenting a small set of essential options first, then revealing specialized detail on request.
Applied to a dashboard, the primary view surfaces the KPI or exception that matters most. Filters, drill-downs, and record-level detail sit behind explicit controls a click away.
In the Lakeside project, this layered approach meant operations staff saw utilization and alarm status immediately, while more granular detail waited one click away rather than cluttering the first screen.
Make Every Interaction Predictable
Interactive charts fail users when the interface doesn't explain itself. Cover the basics:
- Visible affordances and clear labels on every filter or toggle
- A reset control that's easy to find
- Meaningful empty states ("No alerts in this range" beats a blank chart)
- Loading feedback so users don't assume something broke
- Clear confirmation of the current selection: active filters, date range, applied sort
Users exploring data also need to keep their bearings. Preserve their place after a drill-down, show breadcrumbs where relevant, and let people compare two states side by side instead of relying on memory.
Direct Attention Without Decorative Color
Size, position, contrast, and line weight do more work than color alone. Use hierarchy and whitespace to direct attention, not a rainbow of accent colors. Reserve color for exceptions and priorities. When everything is highlighted, nothing is.
None of this holds up without testing against real tasks and real data. A usability study or UX audit with representative users surfaces confusing metrics, dead-end workflows, and unmet needs faster than internal review ever will.
This is where a research-led design partner earns its keep. Yes Yes Know's process for B2B software runs through Understanding, Designing, and Building phases, with usability validation built into each stage rather than bolted on at the end.
Make Visualizations Accessible, Trustworthy, and Testable
Accessible data visualization isn't an add-on. It determines whether a meaningful share of your users can use the product at all. WCAG 2.2 sets specific, testable benchmarks:
- Non-text elements need at least 3:1 contrast against adjacent colors when they're required to understand content (W3C, WCAG 2.2)
- Color can't be the only signal. A red/green status indicator needs a label, icon, or pattern alongside the hue
- Every interaction needs a keyboard equivalent. A filter that only works by dragging a mouse slider isn't accessible
- Focus states need to be visible, so keyboard users can see where they are on screen
Give Users an Equivalent, Not a Downgrade
A complex chart needs a text alternative that carries the same substance, not a caption that just names the chart type. Good practice means pairing the visual with:
- A concise text summary above or below the chart
- A data table with proper headers, so screen reader users can navigate row by row
- Direct data labels instead of relying solely on a legend
- A downloadable export for users who need the raw numbers
None of this requires stripping out the visualization. It means treating the chart and its accessible equivalent as one experience, not two separate deliverables.

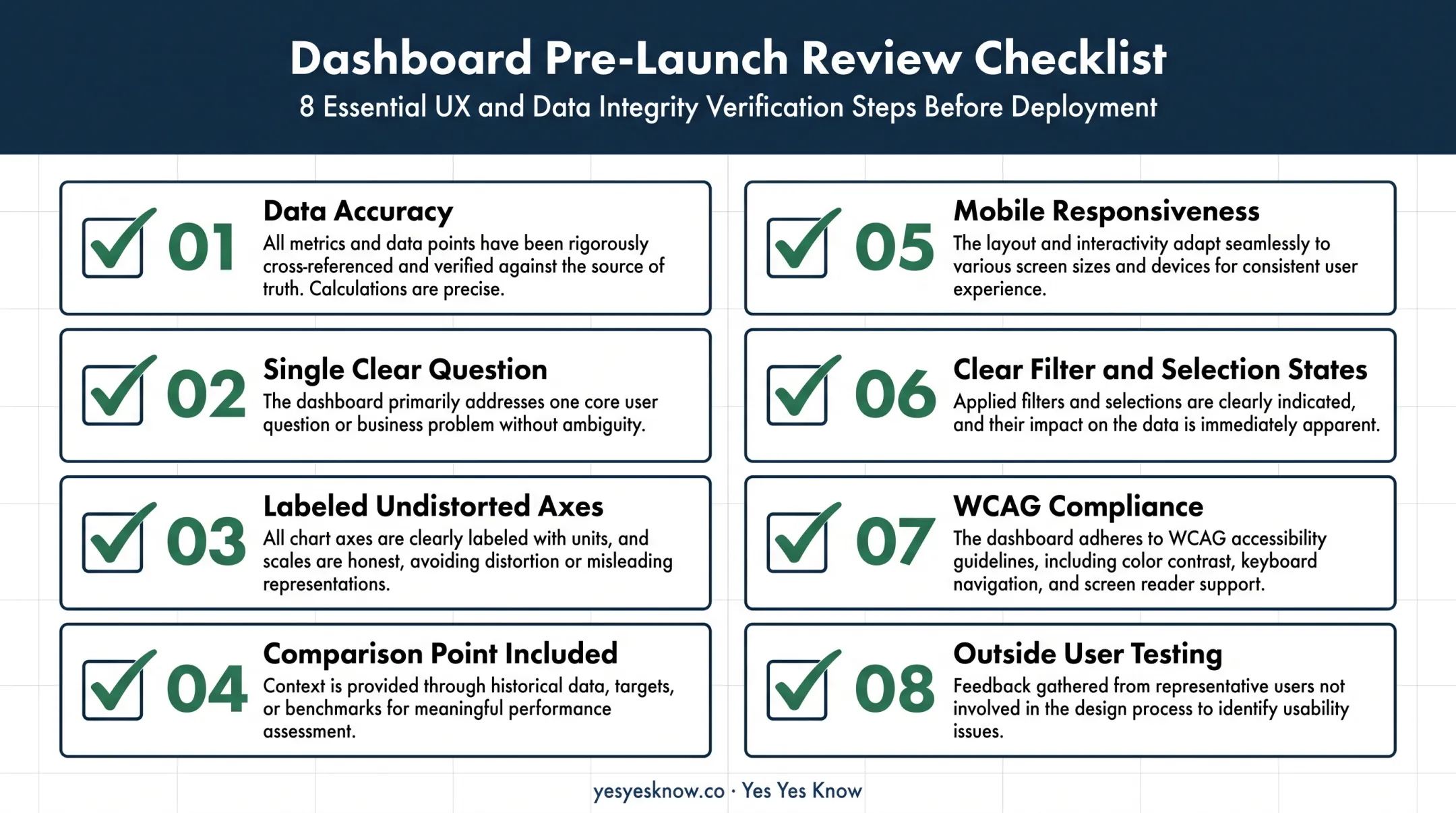

Pre-Launch Checklist
Before shipping a dashboard or chart, run through this list:
- Does the data match its source, and is it current?
- Does the chart answer one clear question?
- Are axes, units, and scale labeled and undistorted?
- Is there a comparison point (benchmark, prior period, target)?
- Does it hold up on a smaller screen?
- Are filters, resets, and selections clearly indicated?
- Does it meet WCAG contrast, keyboard, and non-color requirements?
- Has it been tested with people outside the team that built it?
Turning that checklist into a repeatable process is where most teams stall. Yes Yes Know builds checks like these into its accessibility audits, mapping each issue to specific WCAG 2.2 criteria and rating severity from critical to minor. Founder Jen Bullard holds a CPACC certification through the International Association of Accessibility Professionals.
The firm's flat-fee accessibility audit runs $5,000 and is delivered within 10 business days — a fixed cost that's often easier to plan around than open-ended remediation work.
Frequently Asked Questions
What are the 5 C's of data visualization?
Frameworks vary, and no version is universally standard. One commonly cited version defines Capture, Clean, Combine, Calculate, and Control as steps for managing data before visualizing it. Apply whichever framework you use in service of the user's actual question, not as a checklist on its own.
What are the 7 types of graphs?
Seven broadly useful categories are bar, line, pie or part-to-whole, scatter, histogram, area, and box-and-whisker graphs. The right choice always depends on the relationship you're showing, whether that's comparison, trend, or distribution.
What are the 7 pillars of UX design?
There's no single universal list, but Peter Morville's widely referenced UX Honeycomb offers a practical framework: useful, usable, findable, accessible, credible, desirable, and valuable. Each pillar maps to a concrete design decision in data visualization, from supporting a real task to meeting accessibility requirements.
How does UX design improve data visualization?
UX design grounds a chart in user research, task-focused chart selection, and information hierarchy instead of guesswork. It also brings interaction design, accessibility standards, and usability testing into the process, so the visualization answers a real question rather than just displaying accurate numbers.
What makes a data visualization accessible?
An accessible visualization has sufficient color contrast, readable labels, and keyboard access, plus non-color cues for anything conveyed through hue alone. It also needs a text or table alternative and screen reader support, confirmed through testing rather than assumed.
